Pixotope is an open software-based solution for rapidly creating virtual studios, augmented reality (AR), driving LED Volumes/extended reality (XR), and on-air graphics.

It utilizes powerful commodity hardware and is specifically designed to connect with partner technologies and external data sources.

#lauterwerden_15_2020-12_9296

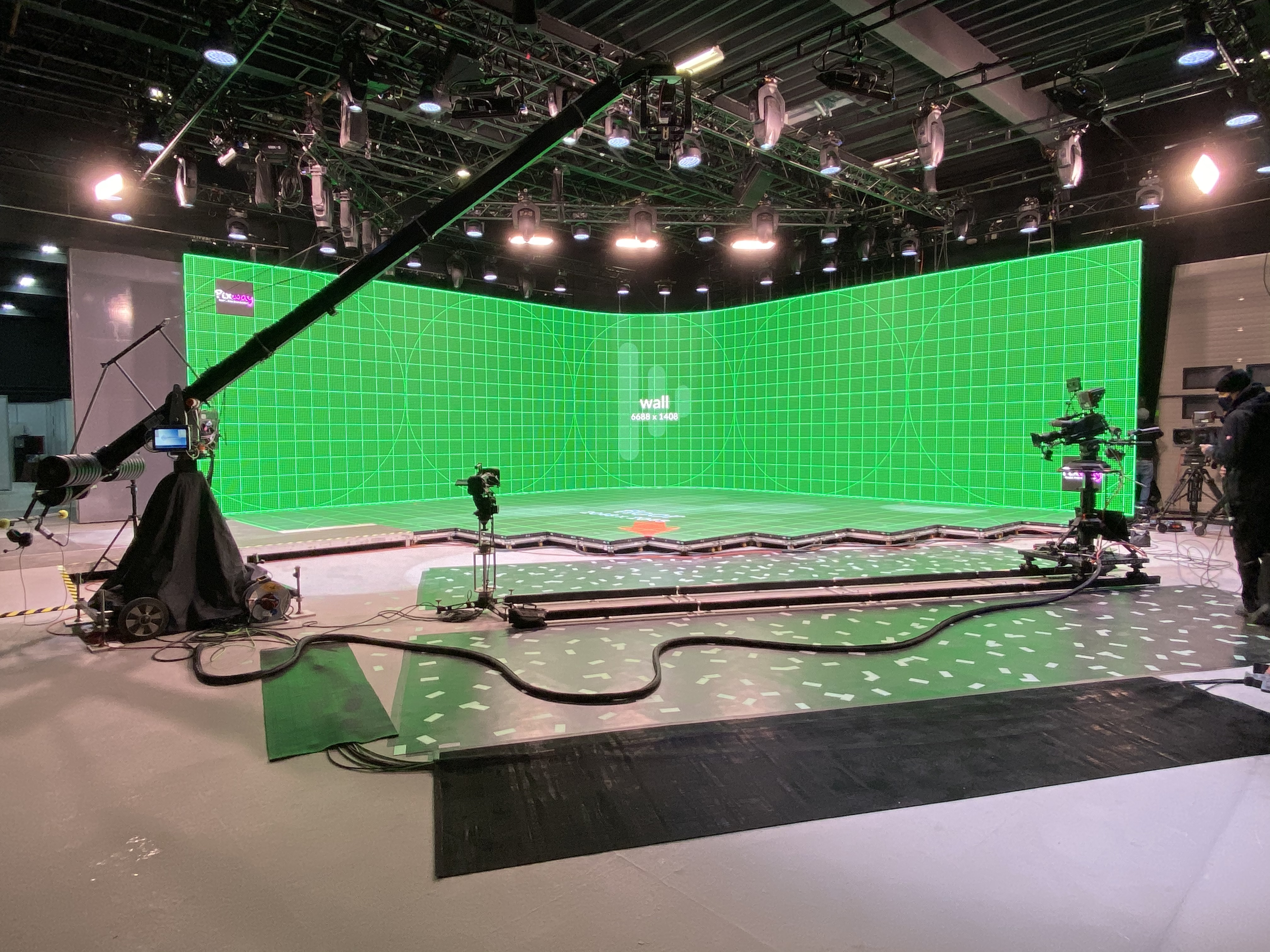

3D real-time Tracking Solutions

Pixotope Camera Tracking is used worldwide across broadcasts, exhibitions, and sports events.
With more than 20 years of experience in tracking for real-time visual effects and Virtual Production, Pixotope Camera Tracking is unique in the market as the only system that covers all types of tracking methods, from mechanical to marker-based and TTL (through the lens) in a single software product.
opttra_02

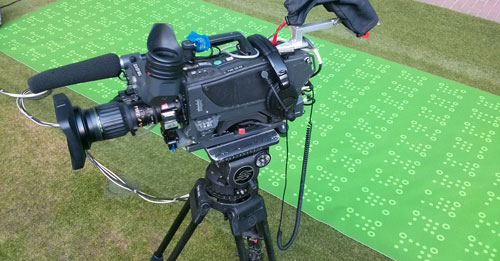

Free camera movement, even for hand-held shots

Pixotope optical camera tracking systems accurately calculate the 3D position and orientation of the camera body itself.
This enables any kind of camera movement within the tracking area, also suitable for hand-held cameras.
The additional integration of pre-calibrated zoom lens data allows random zoom and focus settings regardless of the camera movements.
20210817_195443

Works on any support system

Pixotope optical camera tracking systems measure the position and orientation of the camera body itself and work independently of the camera support system which is currently being applied.
Now you can simply choose between using a tripod, pedestal, dolly, jib arm, crane, Steadicam, or even a hand-held camera. Should you choose to switch to a new or rented support system to suit your client's needs.
There is no need to purchase an additional specialized support system, simply upgrade your existing one.

Pixotope Camera Tracking Solutions

vlcsnap-2022-07-01-09h16m19s715

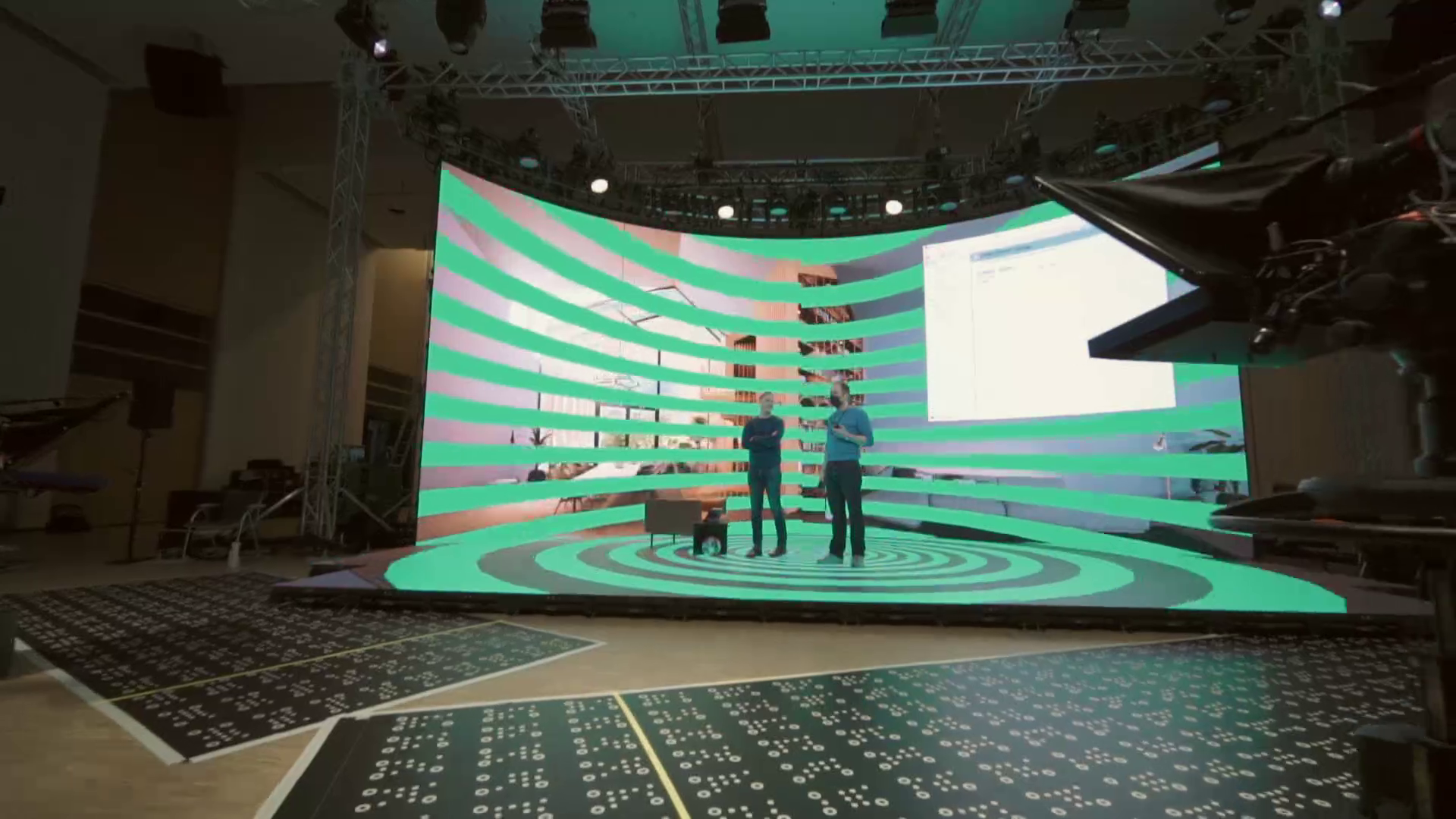

Pixotope Tracking Studio

The Studio edition of our Pixotope camera tracking system provides a robust yet accessible solution for smaller studios looking to embrace virtual production.

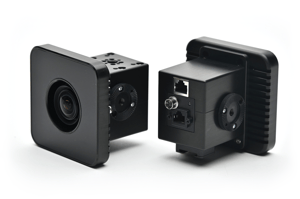

Pixotope Tracking Studio uses small coded markers, combined with an Infrared sensor unit attached to the camera to enable freedom of movement for the camera within the studio, regardless of on-set or lighting conditions.

6b0ad4_1f871c9370184d75802a211f7df99966_mv2

Pixotope Tracking Fly

The “Fly” edition of Pixotope Tracking uses our unique, TTL (through the lens) optical tracking to enable augmented reality experiences to outside sports and other live event productions with live footage from drone cameras.
With Pixotope Fly Edition, you don't need external markers or proprietary hardware; instead, it uses computer vision to allow changes to be made in the space of a commercial break.
When combined with the industry-leading Pixotope augmented reality solution, Pixotope Tracking provides an unparalleled viewer experience that is bound to make your productions go viral.


vlcsnap-2022-07-01-09h20m29s891

Pixotope Tracking Complete

The Complete Edition of Pixotope Tracking brings together all the technology in the Pixotope tracking product enabling complete flexibility whatever the production.

With or without infrared and with the option to work with or without markers, Pixotope Tracking Complete can work in any scenario to provide robust and reliable tracking to create seamless Virtual Productions.

20210817_195656 (3)

Pixotope Tracking XR with GhosTrack

Designed to work specifically in large LED volumes where there are few natural markers and little or no opportunity to place reflective markers, Pixotope Tracking XR uses our unique GhosTrack technology to “hide” markers on the LED volume itself.

GhosTrack technology makes perfect use of the patented GhostFrame system. To calculate the pose of the camera, it uses hidden information of GhostFrame LED panels. This means that it can be set up automatically and within a very short time, it delivers the highest precision tracking where other systems simply wouldn’t work.

Versatile real-time tracking solution that covers all types of tracking methods.

Product

Pixotope Tracking Studio

Pixotope Tracking Complete
working principle marker based markeless
reference markers real features in natural environment + markers as needed
tracking range limited unlimited
support system all all
degrees of freedom 6 DoF (ptr, xyz) plus full optical properties of lens 6 DoF (ptr, xyz) plus full optical properties of lens
in- / outdoor ✓ / ✓ ✓ / ✓

Features

Pixotope Tracking Fly

  • tracks on the video stream of the filming camera only
  • no additional hardware sensors required on the filming camera, measures Through The Lens
  • autonomous tracking of real features in a natural environment
  • enables remote tracking setups just based on transmitted video stream
  • no markers required, no previous surveys
  • tracks indoors and outdoors
    with complete freedom of movement



Pixotope Tracking Complete

  • autonomous tracking of real features in the natural environment
  • no markers required, and no previous surveys
  • tracks indoors and outdoors with complete freedom of movement
  • for any camera rig, including handheld, Steadicam, Crane, jib, dolly
  • new: IR setup for extreme lighting conditions

Pixotope Tracking XR with GhosTrack

  • supports GhostFrame hidden tracking reference
  • no additional markers or sensors at set required
  • fast and automatic Installation
    for any camera rig, including hand-held, Steadicam
  • highest precision for any XR Production
