6 Camera Tracking Mistakes in Virtual Production and How to Avoid Them

Let's be honest: camera tracking can make or break your virtual production. When it works, it's invisible magic. When it fails, everyone notices - especially during a live broadcast. After supporting hundreds of productions worldwide, we've seen every tracking mistake imaginable.

Here's what often goes wrong and, more importantly, how to fix it.

1) Skipping Proper Calibration (The "It Looks Fine" Trap)

The Mistake: Rushing through calibration because the tracking "looks close enough" in the viewport. This is virtual production's equivalent of building on sand.

Why It Hurts: That tiny offset you ignored? It compounds with every camera move. By the time you're on air, your AR graphics are floating off their marks, and your XR walls are sliding around like they're on ice.

The Fix:

• Block out 2-3 hours for proper calibration - do it right, do it once!

• Use our automated calibration tools in Pixotope (yes, they're there for a reason)

• Verify tracking accuracy at multiple focal lengths and positions
• Properly document your calibration settings

Pixotope streamlines and accelerates the calibration process, transforming your potentially time-consuming and error-prone task into a more efficient and reliable one. We achieve it through:

• Automated Calibration Tools: our built-in, automated procedures for various calibration aspects, including lens calibration, mechanical offset calibration, and even XR wall alignment, reduce manual guesswork and the need for highly specialized optical knowledge.

• Consistent Accuracy: By automating complex calculations and providing visual feedback, Pixotope's tools help ensure a higher and more consistent level of accuracy across productions, minimizing the "floating graphics" and "sliding walls" that result from improper calibration.

Watch our video tutorial on how to calibrate a fixed lens:

2) Misunderstanding Tracking Delays

The Mistake: Assuming all tracking data arrives in perfect sync with your video. Spoiler: it doesn't.

Why It Hurts: Even a few frames of delay can create a nauseating "swimming" effect, where graphics lag behind camera movement. Your viewers might not know what's wrong, but they'll feel it.

The Fix:

• Always measure your tracking delay - don't guess

• Use Pixotope's automatic delay detection.

• For multi-camera setups, calibrate delays individually
• Remember: tracking delays can change if routing or hardware changes

Our advanced synchronization system supports multi-source timecode and frame-accurate timing across all tracking protocols.  Watch how to set a delay in our tracking tutorial:

3) Forgetting About Lens Distortion

The Mistake: Using generic lens profiles or, worse, ignoring lens distortion entirely.

Why It Hurts: Real lenses aren't perfect. That beautiful wide shot? It's bending reality in ways your virtual elements aren't. The result: graphics that slide around the edges of frame like they're trying to escape.

The Fix:

• Create lens profiles for every lens you use regularly

• Include multiple focal lengths in your calibration

• Store lens files in our synced Config folder - they'll follow you everywhere

• Update profiles when you service or change lenses

Accurate lens calibration isn't just a nice-to-have; it's fundamental to making tracking work properly.

At Pixotope, we address this challenge by implementing what we believe is the industry's most comprehensive lens model. Instead of using simplified corrections that work "well enough" in the center of the frame, we map the unique characteristics of each individual lens across its entire field of view. This means accounting for not just radial distortion, but also tangential distortion, decentering, and other optical aberrations that vary from lens to lens.

We apply these precise calculations at every step, from initial calibration through to real-time rendering, ensuring that the virtual camera matches the physical one down to the subpixel level.

We've also adopted the SMPTE OpenTrackIO standard, which means our lens data can travel seamlessly through the entire production pipeline, maintaining accuracy from previs to final output.

4) Poor Network Infrastructure

The Mistake: Running tracking data over the same network as everything else, or worse, over WiFi.

Why It Hurts: Tracking data is time-critical. Network congestion or packet loss creates jitter that no amount of filtering can fix. Your smooth camera move becomes a stuttering mess.

The Fix:

• Dedicate a 1Gb network for tracking data

• Use our recommended dual-network architecture

• Implement PTP synchronization across all systems
• Monitor network health with our diagnostics panel

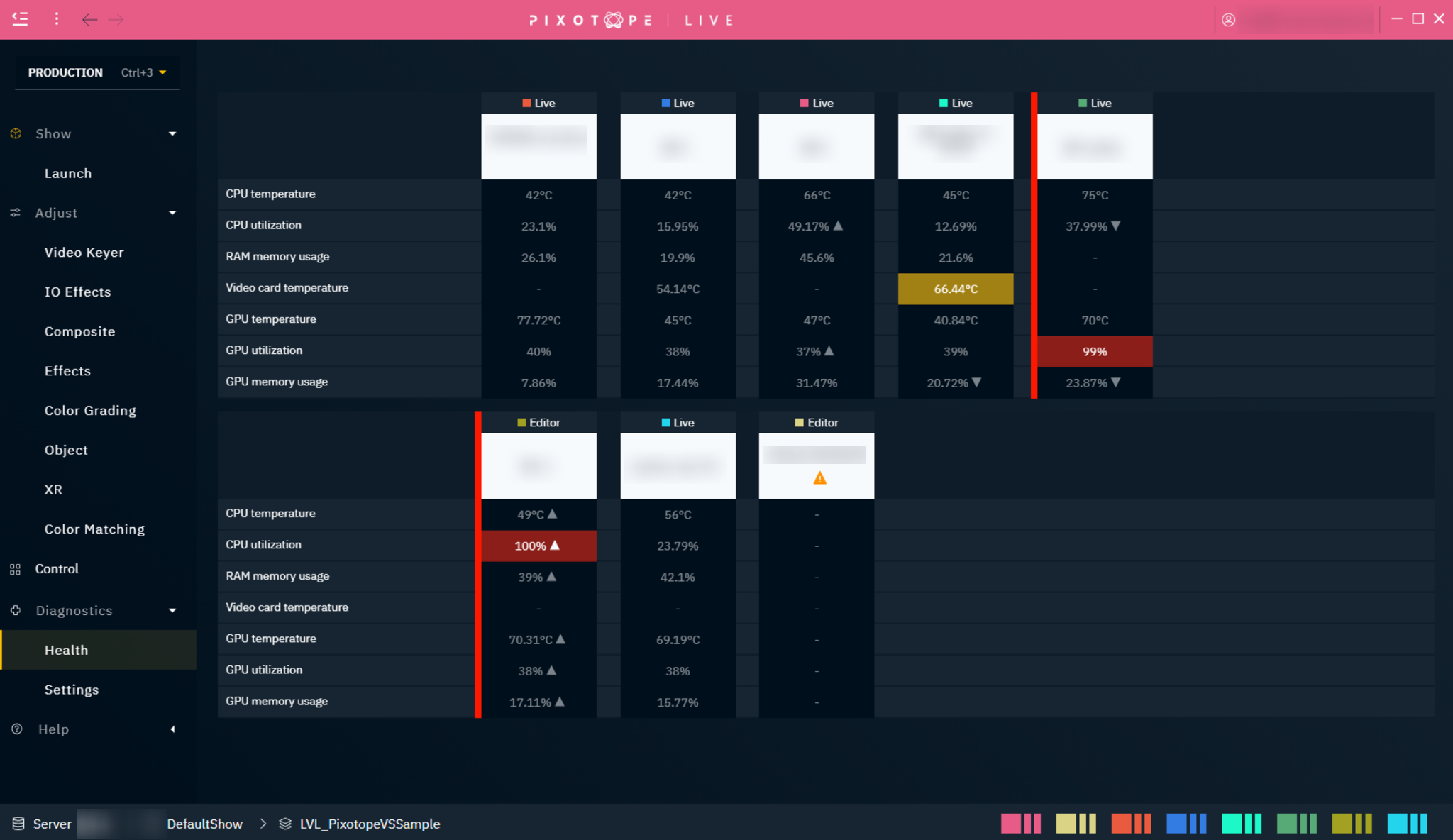

You can always check your network health with Pixotope in our Diagnostics panel.

On top of that, in the rare event of a system failure, our failover mechanism enables a smooth transition to a backup machine, ensuring uninterrupted operations.

Our advanced monitoring capabilities have your back, allowing you to focus on creating extraordinary content.

5) Ignoring Mechanical Offsets

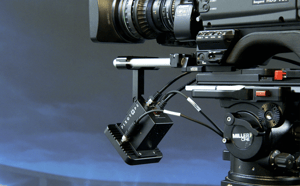

The Mistake: Measuring from the camera body instead of the nodal point, or forgetting about tracking sensor placement entirely.

Why It Hurts: Your tracking system thinks the camera is somewhere it's not. Parallax errors make close objects impossible to track correctly. That interview setup you planned? Good luck making those graphics stick to the desk.

The Fix:

• Measure and input all mechanical offsets precisely

• Use our Camera Mount GUI to visualize your setup

• Account for both sensor position and lens nodal point
• Verify with our Digital Twin calibration tools for XR

Pixotope provides visual interfaces, such as the Camera Mount GUI, to help users accurately input and visualize mechanical offsets. Additionally, the "Calibration Project" provides reference levels and geometry for easy setup and verification, guiding users through the process.

Learn more about Digital Twin in our blog post or watch the video.

6) The Single-Camera Setup Trip

Mistake: Sending engineers to remote sports events with expensive camera tracking equipment to let them calibrate a single camera.

Why It Hurts: During the broadcast, the TV producer typically only uses 2-5 minutes of AR graphics, yet the total cost for deploying an engineer with specialized tracking equipment can exceed $3,500 USD. Add to that the engineer's travel time (often 2 days round trip), venue access fees, equipment shipping costs, and the risk of weather-related tracking failures. The traditional hardware-based approach also limits you to specific camera positions where sensors can be mounted and markers are visible.

The Fix:

Pixotope Zone removes complexities of this workflow by using computer vision technology that works with your existing broadcast infrastructure.

Zone requires only the SDI video signal, a small calibration board, and basic communication with the camera operator – no additional hardware needed at the camera. Any professional broadcast camera and lens combination can be instantly AR-enabled.

The tracking computer and graphics engine remain safely in the OB-van or even back at the studio, meaning your equipment serves multiple productions throughout the day rather than being tied to a single venue.

Setup time drops from hours to under 10 minutes, and since Zone analyzes the video feed using natural field markings and stadium features, it's completely weather-independent and works seamlessly across different sports and venues.

Respect the Setup, Trust the Show

Camera tracking demands respect. Every minute spent on proper setup saves hours of frustration during production. Every shortcut taken compounds into problems that surface at the worst possible moment - usually when you're live.

We've built Pixotope to handle the complexity of modern tracking systems, but even the best tools need proper implementation.

Take the time to get it right. Your productions will thank you, your operators will thank you, and most importantly, your audiences will never know tracking was involved at all.

Because that's when you know you've truly succeeded - when technology becomes invisible and only the story remains.

Want to dive deeper into tracking workflows?

Check out our comprehensive tracking documentation at help.pixotope.com, or reach out to our support team.

We've seen it all, and we're here to help.
